Specific EMC, climate, mechanical environment: Do not use a mobile phone in the vicinity of the device, for the strong radiation
field produced by mobile phone would interfere with the normal function of use.
Specific EMC, climate, mechanical environment: The device after packaged should be stored in a environment of -20°C~+55°C,
relative humidity no more than 95%, and well-ventilated room with no corrosive gas. Strong shock, vibration and snow and rain
should be avoided during transportation.
by manual measure.
printing and other functions.

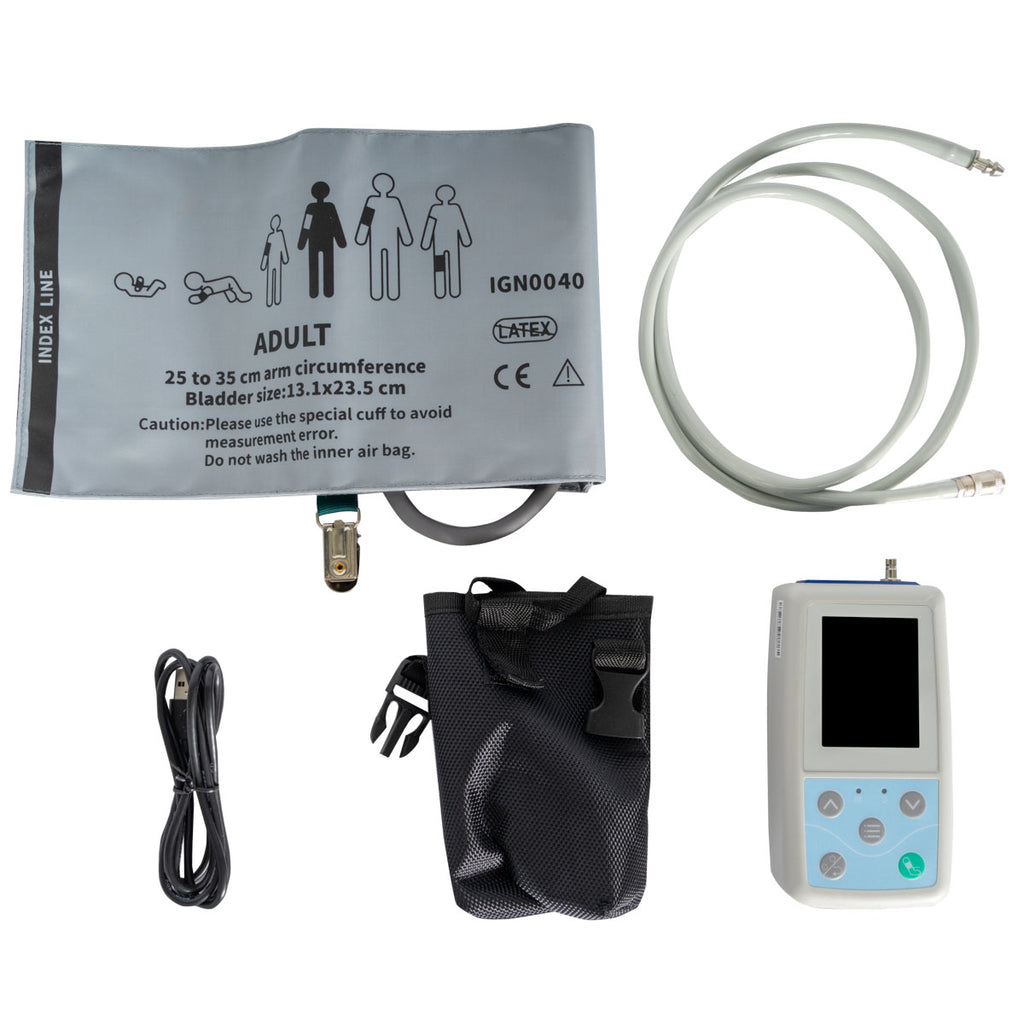

Package included

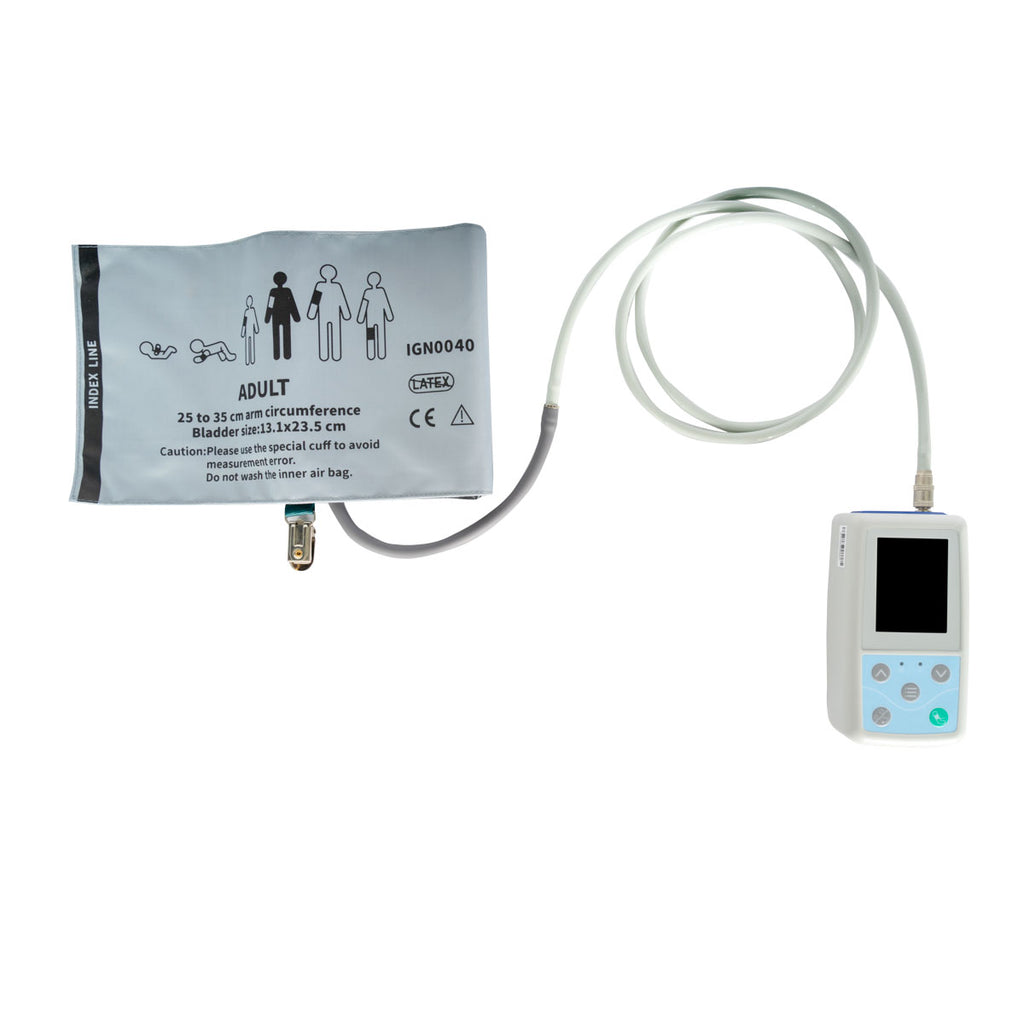

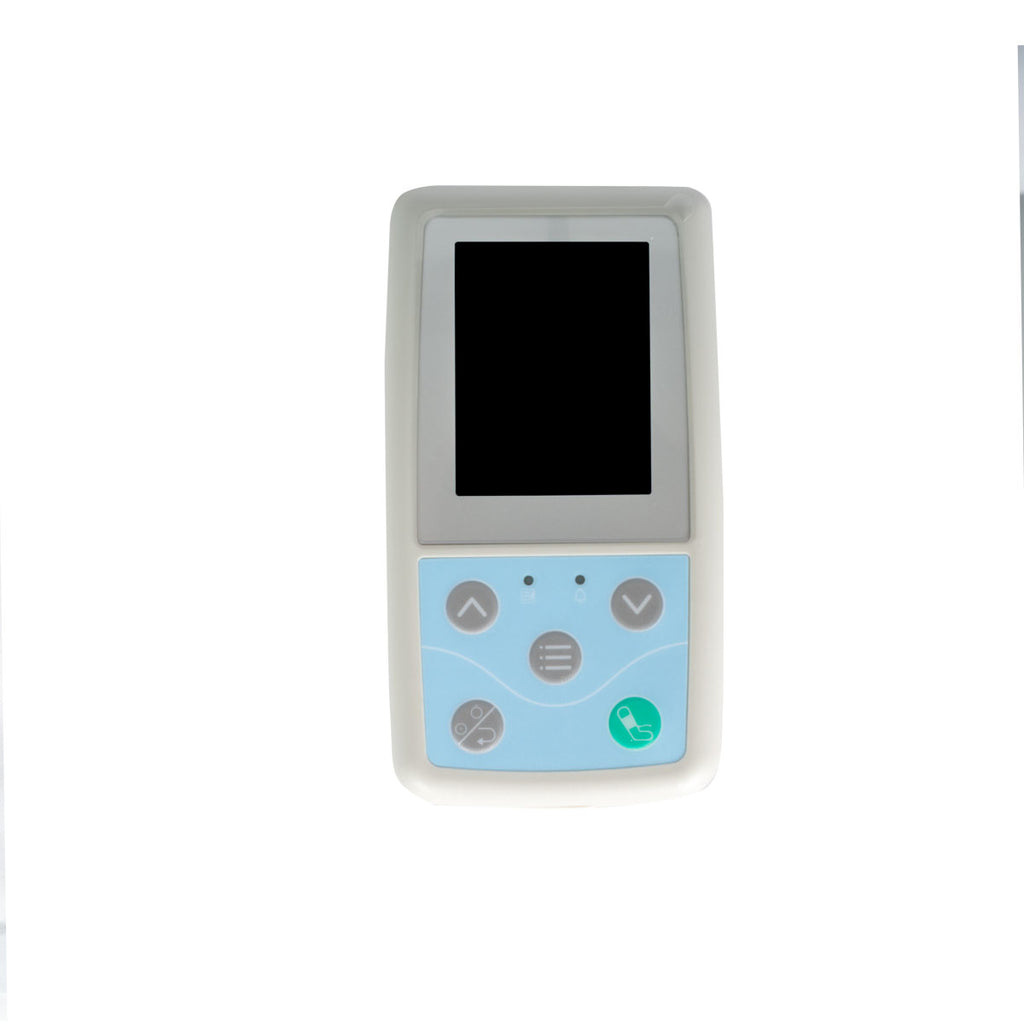

The ABPM 0803846 is a handhold ambulatory blood pressure monitor, which is designed according to oscillography theory. The device could monitor human body blood pressure for up to 24 hours continuously and dynamically, providing an accurate basis for the diagnosis. It is applicable for using in hospital, clinics and other medical institutions.
This device is designed for continuous 24-hour blood pressure monitoring, allowing users to carry out normal daily activities without issue. However, it is not suitable for sports or other physical activities.
Compact and portable, user-friendly interface, easy to use.
24-hour ambulatory NIBP monitoring function, up to 350 groups of ambulatory NIBP data can be recorded for once.
Perfect combination of automatic and manual measurement method, up to 300 groups of data can be recorded for once

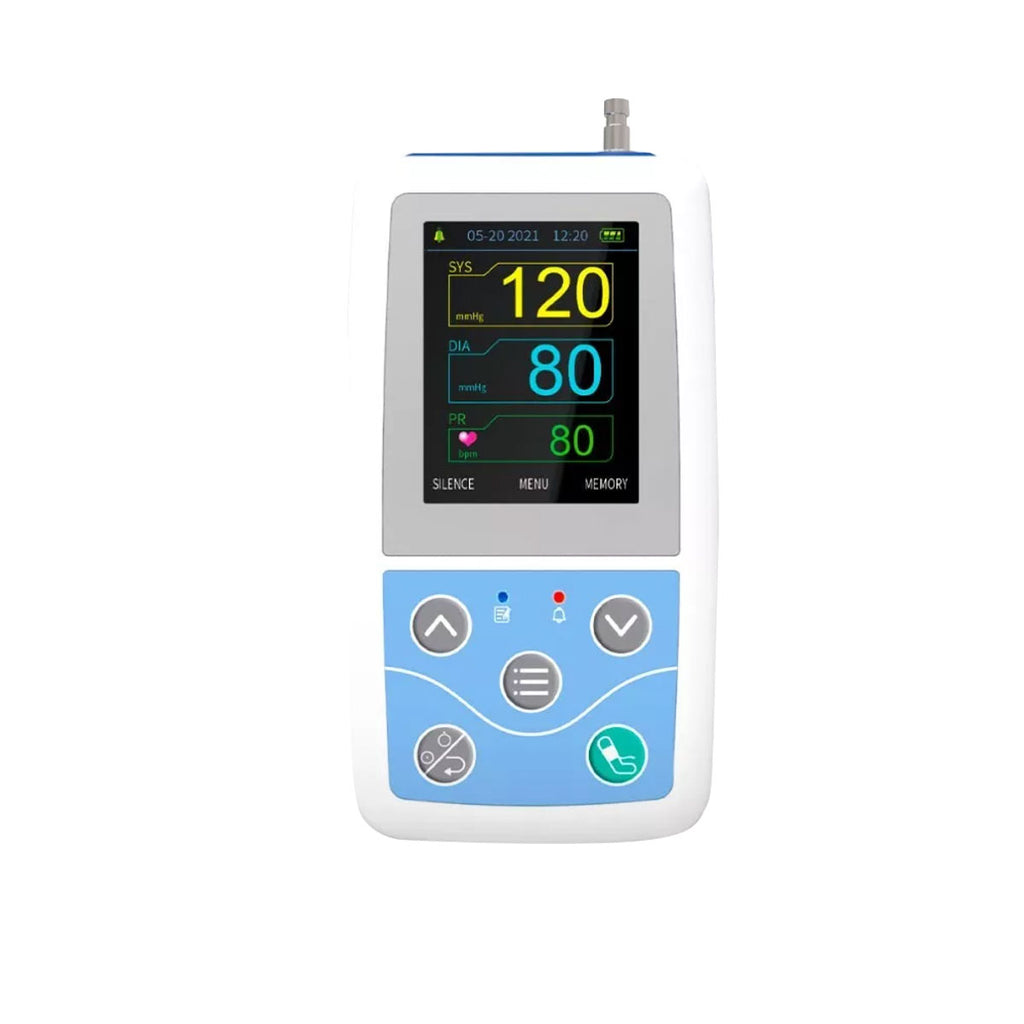

High-definition color TFT display, strong visibility.
On-screen display of "log list", "graphs" , "large font", NIBP data clear display
Display of low power prompt, error message and time.
English menu.
Over-limit prompt function for parameters.
Communicate with PC, PC software can achieve data review, measured results analysis, view of trend graph, reports
Connect to the device by USB interface.
Accessories / Spare parts
- Cuff for Adults (Ref: 0803908 )
- Cuff Pipe Extension (Ref: 0803909 )
| - Measure Method | Oscillometry |
| - Measure Mode | The upper arm measure |
| - Automatic Measure Interval | 5, 10, 15, 20, 30, 40, 60, 90,120, 180, 240 minutes |
| - Measure range | Pressure:0kPa (0mmHg) -39.6kPa (297mmHg) |
| - Resolution | 1mmHg |
| - Accuracy | ±3mmHg |
| - Prompt parameter | SYS, DIA |
| - Inflation | automatic inflation by force pump |
| - Deflation | automatic deflation |
| - Measure range | 40bpm~240bpm |
| - Resolution | 1bpm |
| Power supply | DC 3V (2 × 1.5V AA alkaline dry battery) |
| Safety type | internally powered device, type BF applied partwith defibrillation protection |
| - Temperature | 5°C~40°C |
| - Relative humidity | 15%~85% |
| - Atmospheric pressure | 700hPa ~ 1060hPa |
| - Temperature | -20°C~+55°C |
| - Relative humidity | ≤95% |
| - Patient range | adult, pediatric, neonate. |
| - Supply two kinds of unit | mmHg/kPa. |
| Dimension | 128mm(L) × 69mm (W) x 36mm(H) (without packaging) |
| Weight | <300 g (with battery) |
| Warranty | 2 years |
| Brand | Contec |
| Product code | MK0803846 |
Supplier data (Mobiak). Ask us if this product suits your needs.
Book a free consultation
Ask us about this product
Not sure if it suits you? Call +357 22 660688 or email info@orthohouse.com.cy and we will advise you.
