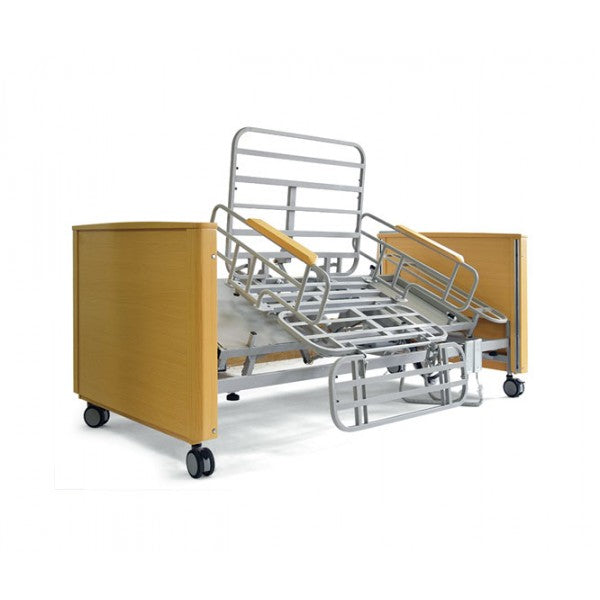

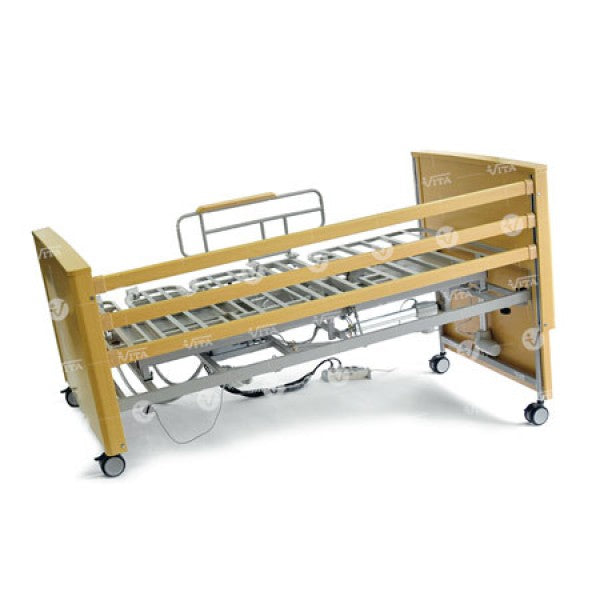

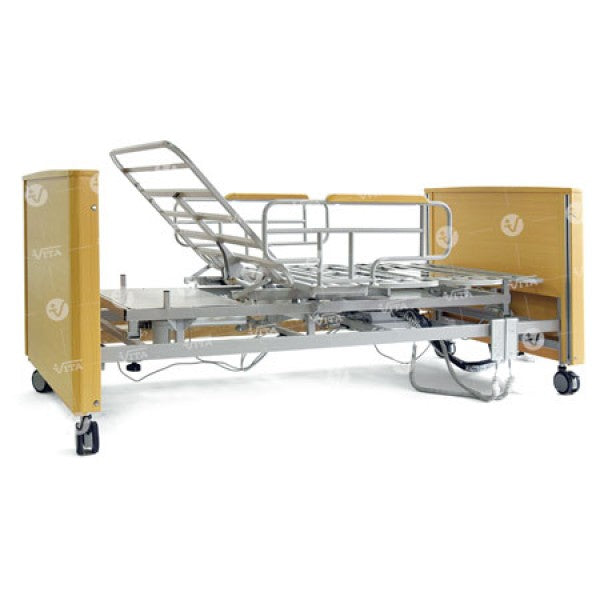

The V-Rotate combines all the functions of an electric hospital bed with those of a lift-up armchair. The seat section can rotate to either side, bringing the user to a sitting position at the edge of the bed and helping them stand.
Backrest, leg raise and knee angle adjust independently, the overall height is electric, and head and leg motors work separately for Trendelenburg and anti-Trendelenburg. A lifting pole with adjustable handle and the mattress are included.
Rotating seat
Turns to sit the user up.
Independent sections
Back, legs and knee.
Carer height
48–88 cm, electric.
Ready to use

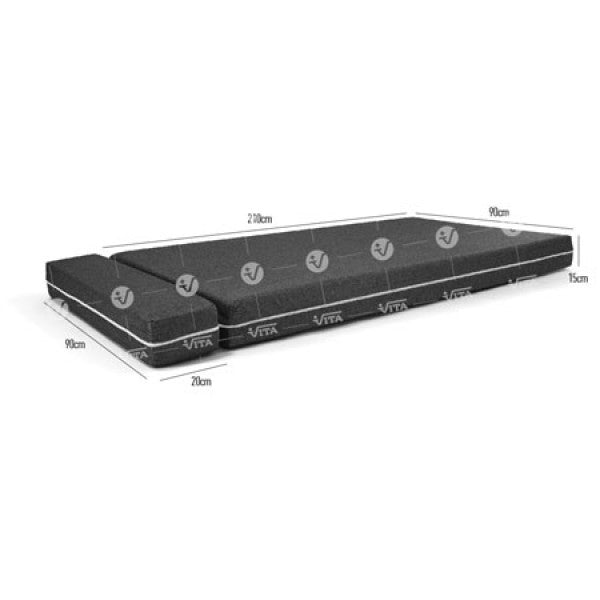

Mattress and lifting pole included.
Motors
7, with 2 handsets.
Tilt
Trendelenburg / anti-Trendelenburg.
Castors
4, each with its own brake.
Side rails
36 cm above the platform.
Assembly
Tool-free.
Rotation side
Set at assembly; the motor may need repositioning to suit the room.
| Overall (L × W) | 220 × 105 cm |
| Mattress platform | 203 × 90 cm |
| Platform height | 48–88 cm |
| Backrest / legs | max. 70° / 35° |
| Side rail height | 36 cm |
| Max. patient weight | 180 kg |
| Safe working load | 220 kg |
| Motors / handsets | 7 / 2 |
Supplier data. Because of its size and weight the bed does not fit in a lift; delivery to upper floors needs a wide staircase (4 people) or an external lift, charged separately.
