Patient Monitor CMS8000 with Printer

MK0803834

€1.716,50
/
Tax included. Shipping calculated at checkout.

Available upon request

Contact us for pricing, availability and delivery time.

Request this product

Please give us your email or phone number so we can reach you.
2 years
Manufacturer warranty

Covered by the manufacturer warranty – service and spare parts through OrthoHouse.

Patient Monitor CMS8000 with Printer

The monitor has abundant functions that can be used for clinical monitoring with adults, pediatrics and neonate.

  • Warranty 2 years
  • 12.1” TFT color LCD

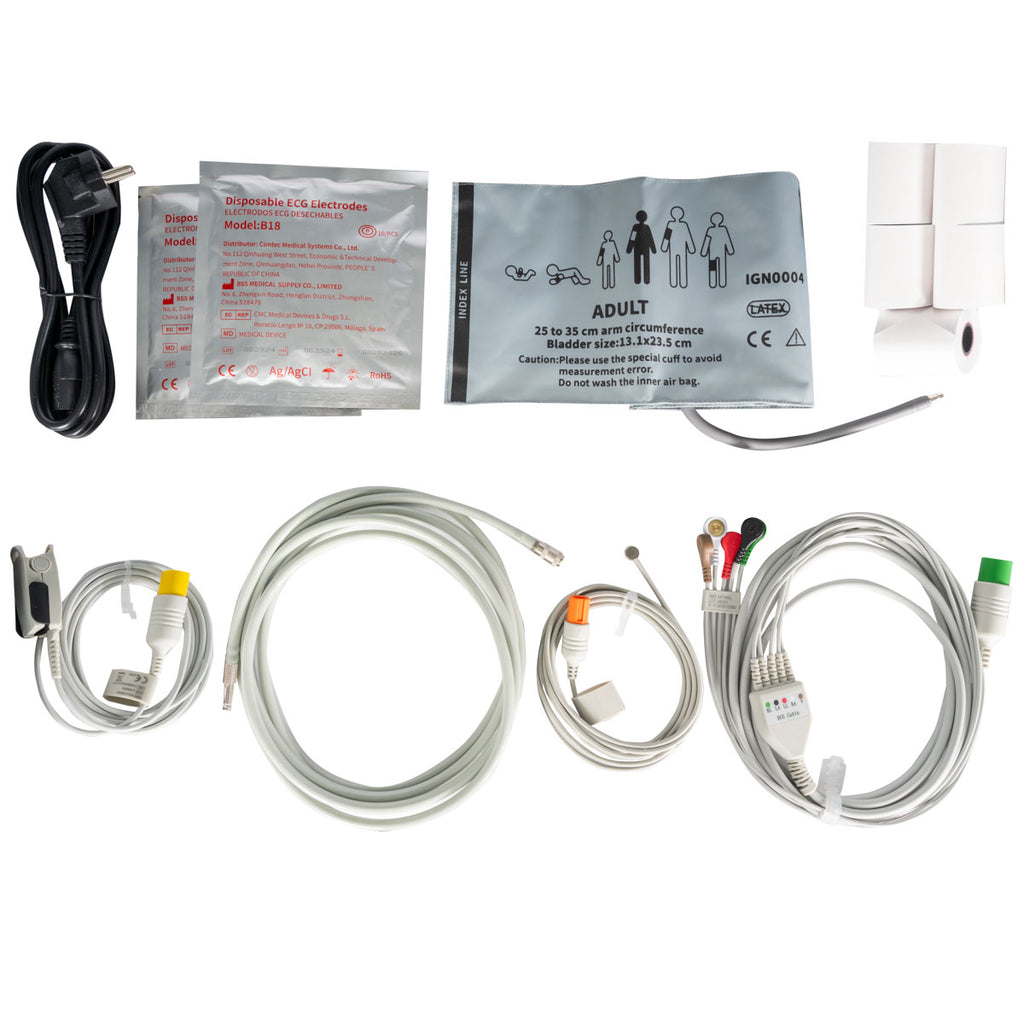

  • 2x Packs 10pcs Pads ECG electrodes
  • ECG cable
  • SpO2 Sensor
  • BP extending tube

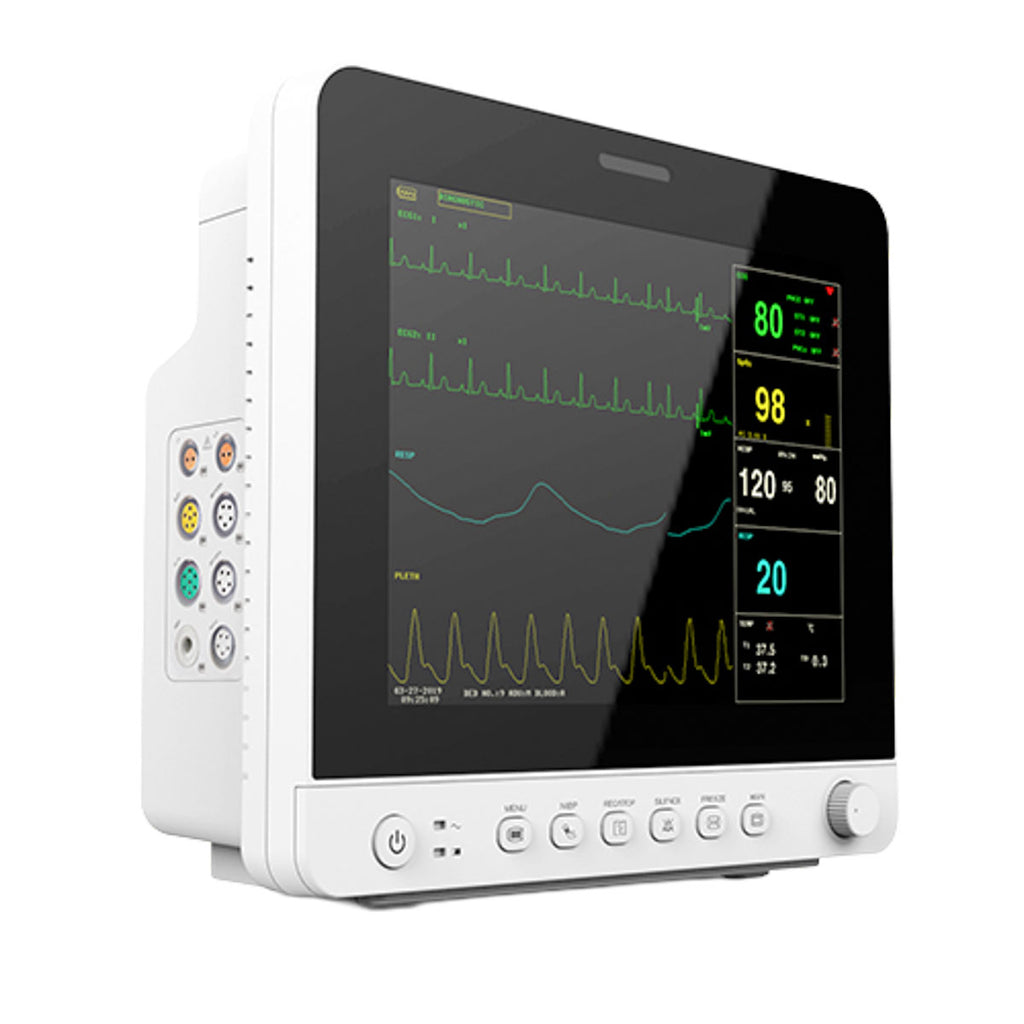

The monitor has abundant functions that can be used for clinical monitoring with adults, pediatrics and neonate. Users may select different parameter configurations according to different requirements. The monitor, power supplied by 100-240V~, 50/60Hz, adopts 12.1” color TFT LCD displaying real-time, date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.

This device can monitor such parameters as ECG, RESP, NIBP/IBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.

Functions

ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP

Heart rate (HR)

ECG waveform

Arrhythmia and ST-segment analysis

Respiration rate (RR)

12.1” TFT color LCD
Fanless design, quiet, energy-saving and clean, which reducesthe possibility of cross-infection
All-round monitor for adults, pediatric and neonate
With standard interface, oxygen graph, trend graph,big character interface and view bed, convenient to observe
Finish all operations with keys and knobs
Maximum 8-channel waveform synchronous display
Display 7-lead ECG waveform on one screen, cascade ECG wave- form display
Adopt digital SpO2, technology, anti-motion and anti-ambient light Interference, and measurement can be performed under the circumstance of weak filling
Heart rate variability (HRV) analysis function
Review for 71 alarm events of all parameters and 60 arrhythmia alarm events
Drug concentration calculation and titration table functions
One-touch printing of trend graph Connect to Central Monitoring System by 3G, Wi-Fi or wired mode

Accessories / Spare parts

  • Trolley for Patient Monitor (Ref: 0803837 )
  • Carrying Bag for Patient Monitor (Ref: 0803838 )
  • Temperature Sensor (Ref: 0803916 )
  • Capnograph ETCO2 (Ref: 0803836 )
  • Arterial Pressure Adapter (Interventional) (Ref: 0803835 )
  • Nasal Cannula of Capnograph (Ref: 0803806 )
  • Electrodes for patient monitor (Ref: 0803839 )
  • Printer paper (Ref: 0803917 )
  • Sensor SpO2 oximetry (Ref: 0803915 )
  • Cuff Pipe Extension (Ref: 0803909 )
  • ECG cable (Ref: 0803914 )
  • Cuff for Adults (Ref: 0803908 )
NIBP measurement mode Manual/AUTO/STAT, storage for 4800-group NIBP data
-TEMP T1, T2, TD
CH1 SYS, DIA, MAP
CH2 SYS, DIA, MAP
AwRR Air Way Respiration
Dimension 319mm(L) x 167mm(W) x 268mm(H)
Weight < 3kg (excluding accessories)
Warranty 2 years
Brand Contec
Product code MK0803834
