The best portable AED (Automated External Defibrillator) conceived for a quick and simple treatment of the Sudden Cardiac Arrest (SCA) and to assist in delivering the Cardiopulmonary Resuscitation (CPR).
The lightweight and portability, thanks to the folding handle, the compactness and its catchy look, are conceived to meet the "gold standard" for early defibrillation in public large areas.
Package Contents
Smarty Saver Key Features
Specifications
Main Device

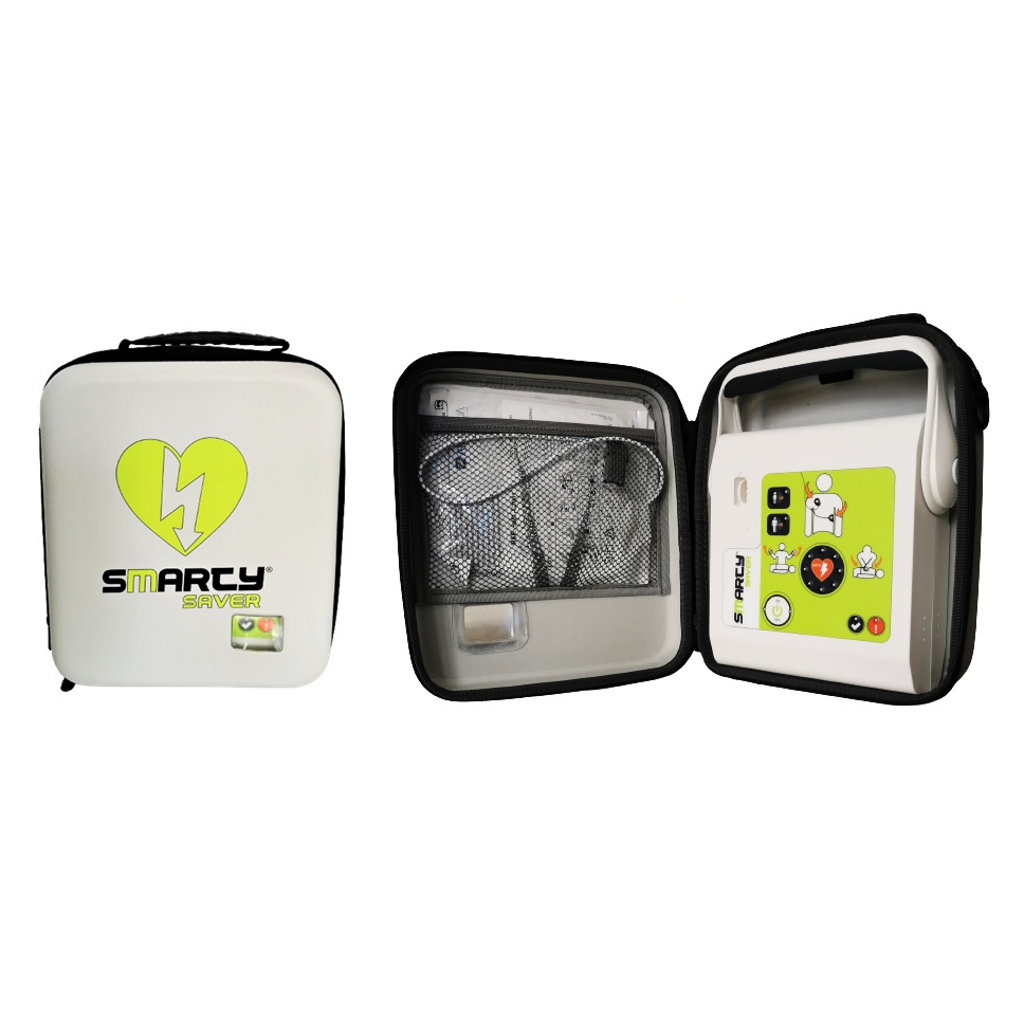

Carrying Bag
Reduced dimensions (smaller than an A4 sheet!)

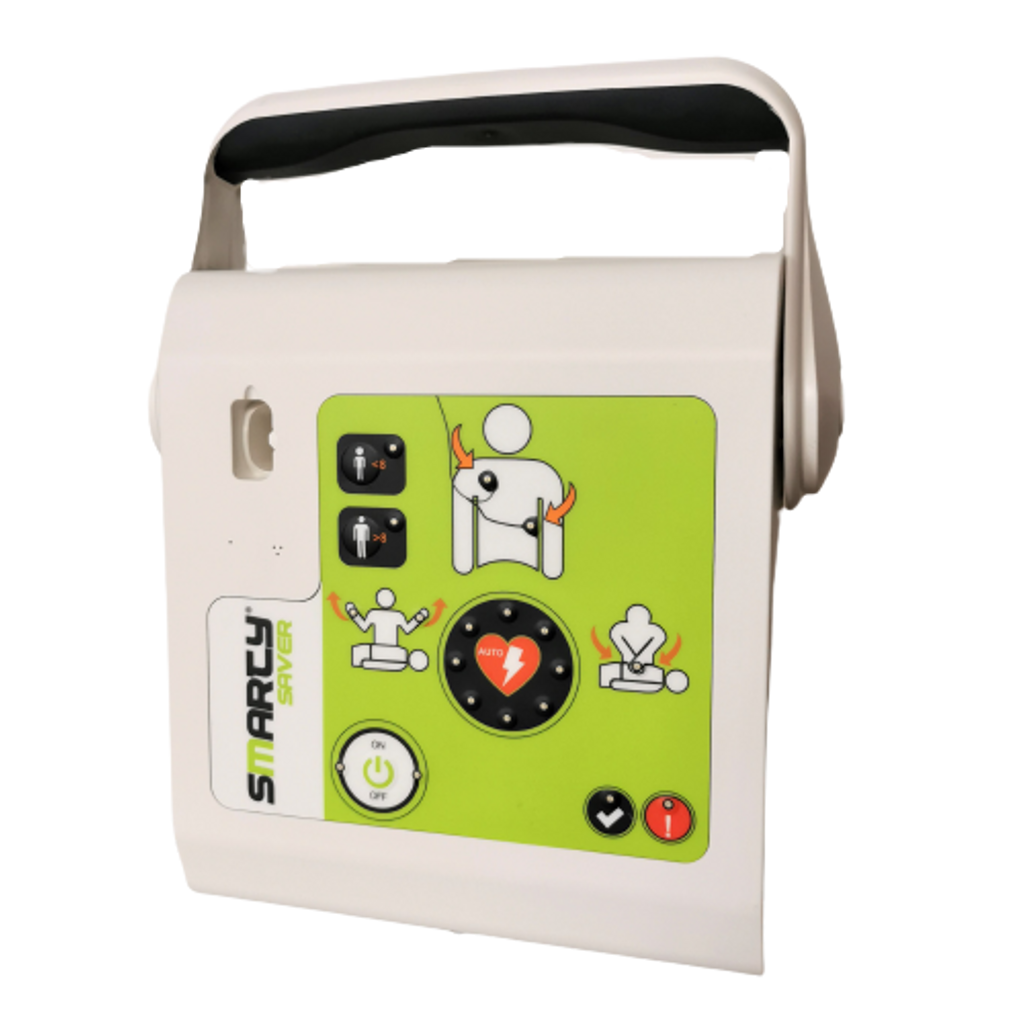

Practical folding handle
Audible and visual signals for users
Guidance with voice commands and metronome
Universal pads for general use
BTE waveform defibrillation with <200J shock
Accessories / Options Upon Order
- AED Software "SAVER VIEW EXPRES" (Ref: 0803233)
- Metal wall-mounted Defibrillator Box (Ref: 0805451 )
- AED Cabinet with Alarm (Ref: 0805495 )
| UNIVERSAL pads (ref. | 0803232 ) (Adult & Children) |
| Battery (ref. | 0803231 ) |
| Output Waveform | Biphasic Truncated Exponential |
| Energy Output Sequence | Adults: Gradual, 150,200J (age >8 or weight >25 kg) Pediatric: Fixed 50J (age from 1 to 8 or weight <25 kg) |
| Range of Resistance | 20H - 200H |
| Charging Time | ≤ 13 sec with shock at 150J ≤ 16 s with shock at 200J (New Battery) |
| Analysis Time | from 4 to 15 seconds |
| Audible Hints - Visual Hints | Device status: 2 LEDs red / green - Placing pads: 2 red LEDs - Do not touch the patient: 2 red LEDs - Touch the patient: 1 green LED - Adult patients: 1 green LED - Pediatric patients: 1 green LED - On/off button: 2 green LEDs - Electric shock button: 8 red LEDs |
| Handling | Three buttons - On/Off, Patient Select (adult/pediatric) |
| IP Protection Class | IP 56: Protection Against Dust and Water |
| Size | 200x213x71 mm (with folded handle) 257x213x71 mm (with handle open) |
| Weight | 1,56 Kg (with battery and pads) |
| Pads Dimension | Total surface 136cm2, active surface area 94cm2, cable length 120cm (outside the package) |
| Pads Lifetime | 4 Years (until the expiry date printed on their labels) |
| Battery | Non-rechargeable battery, 8 cells Li-MnO2 12VDC-3000mAh |
| Battery autonomy | Up to 350 full rescue cycles. (200J shock + CPR). Up to 100 hours of continuous ECG analysis |
| Device Warranty | 5 Years (from the date of manufacture) |
| Battery Warranty (Standby Life Warranty) | Battery code SMT-C14031: 3 years (from the time it is connected to the AED, under the specified conditions of a temperature of 20°C and relative humidity of 45%). Battery code SMT-C14033: 4 years (from the time it is connected to the AED, under the specified conditions of a temperature of 20°C and relative humidity of 45%). |
| Warranty | 5 years |
| Brand | Ami Italia |
| Product code | MK0803230 |
