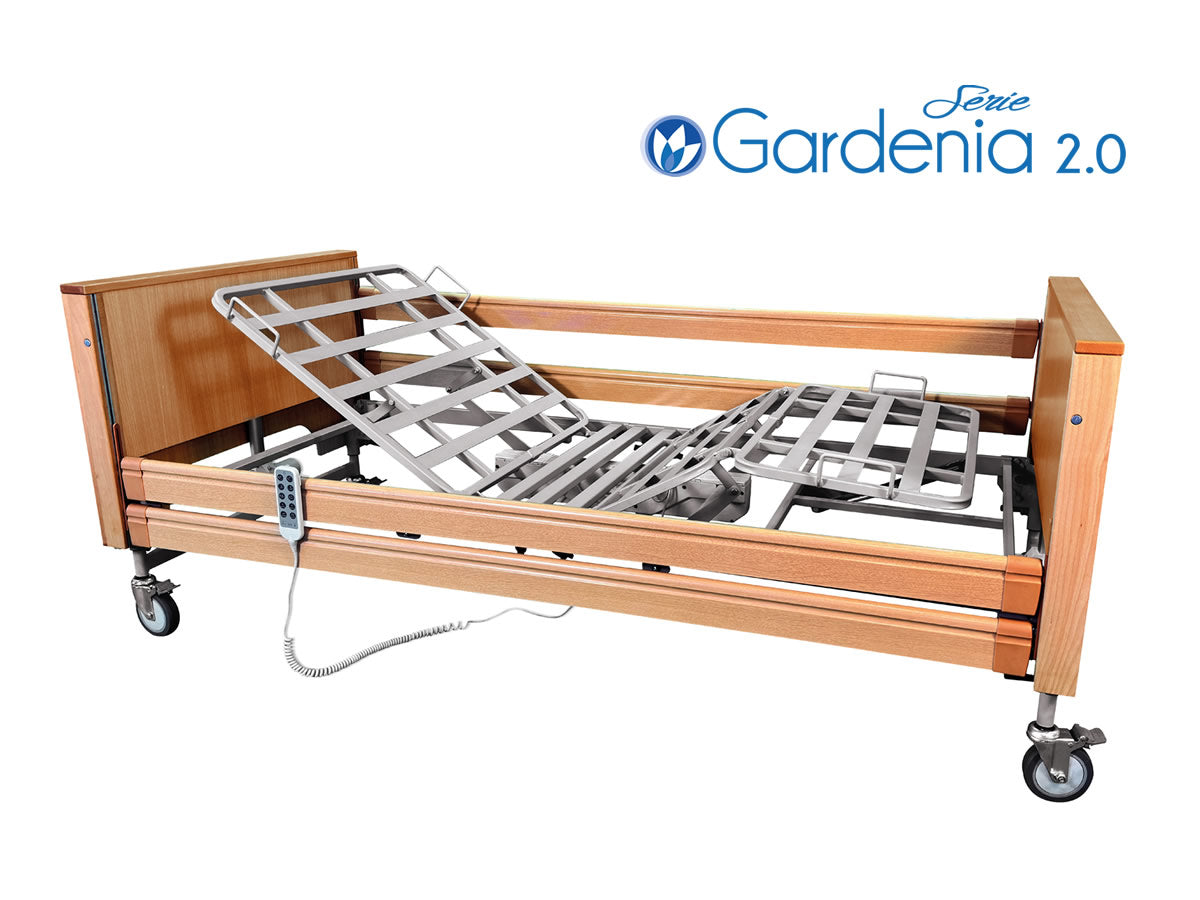

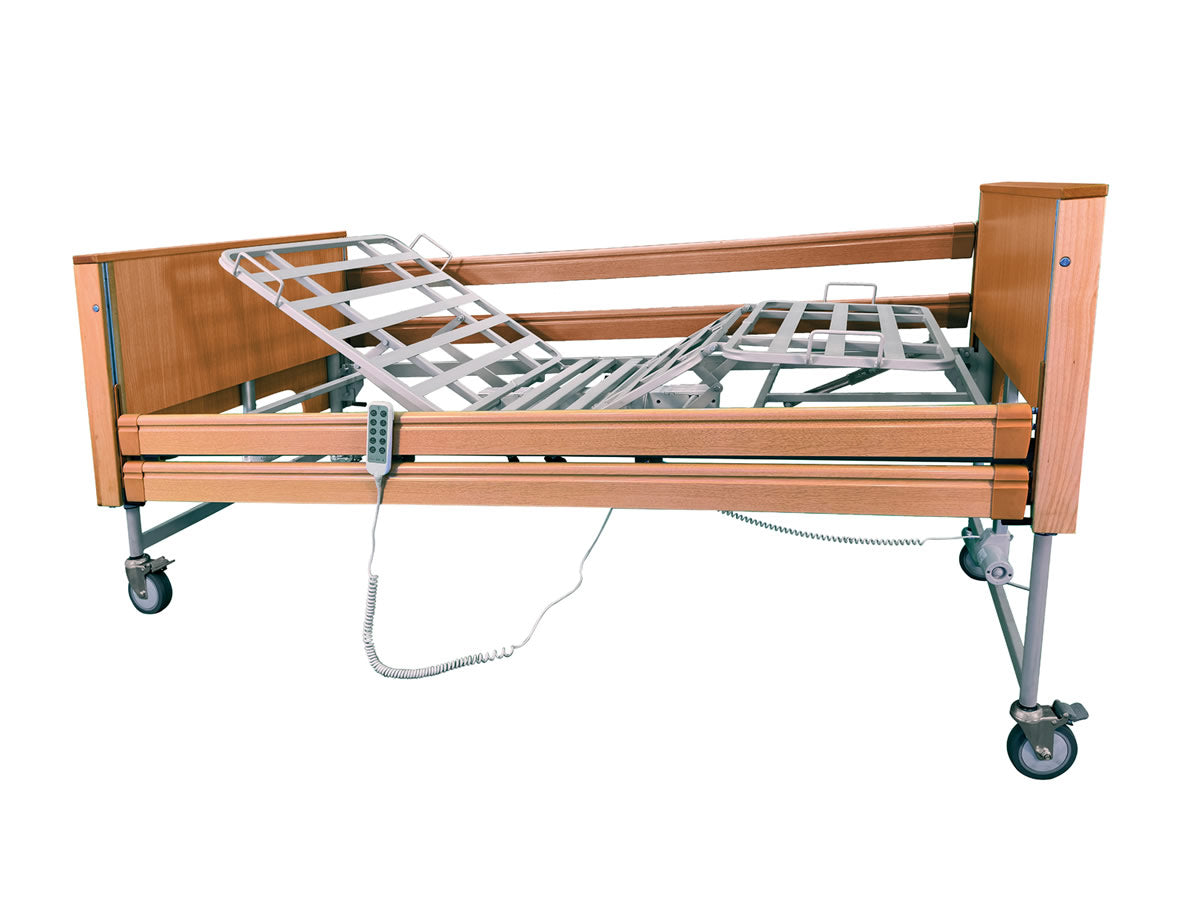

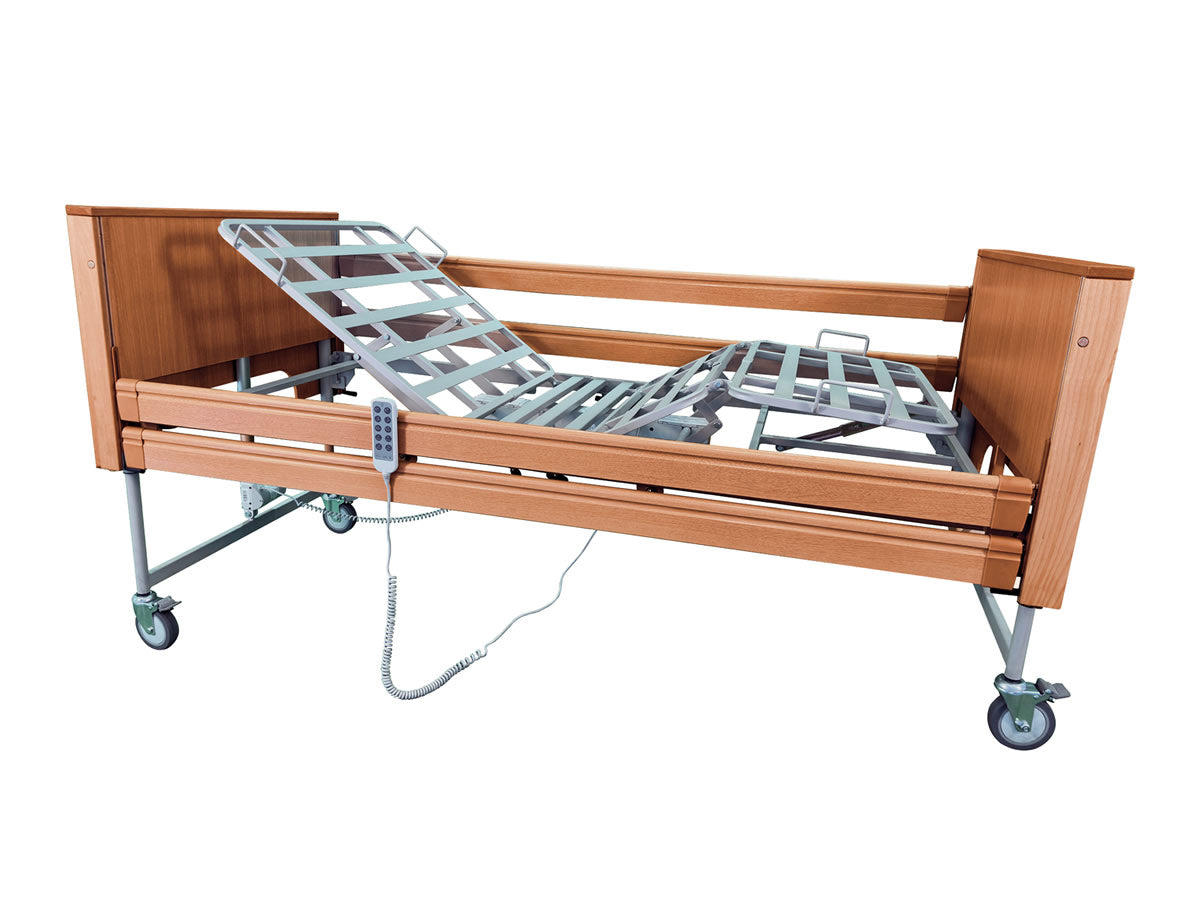

Electric hospital bed No mattress

Steel tubolar frame, powder coated. 4 swivel casters 125mm with brake. Bedhead and footboard in wood, aluminium bedrails, wooden effect. Patient lift and IV pole supports. According to UNI CEI EN 60601-2-52 for medical beds.

Technical features

Trendelenburg – Height adjustable
Aluminium holding bedrail, wooden effect
4 swivel casters 125mm with brake
Bed: cm 216x102x127h (from bedhead to footboard)
Bed frame: cm 187x80x40÷81h (from bed frame to ground)
Backrest: max 70°
Legrest: max 30°
Tilt angle: max 12°
Maximum patient’s weight: 135 Kg
Safe working load: 170 Kg
Total weight: 94 Kg

Optional accessories

Cod. MPA307 Bedside rails extension

Cod. MPA301 Patient lift pole with plastic handle maximum weight 75 kg

Cod. MPA303 Steel IV pole Maximum weight 5 kg. each hook
