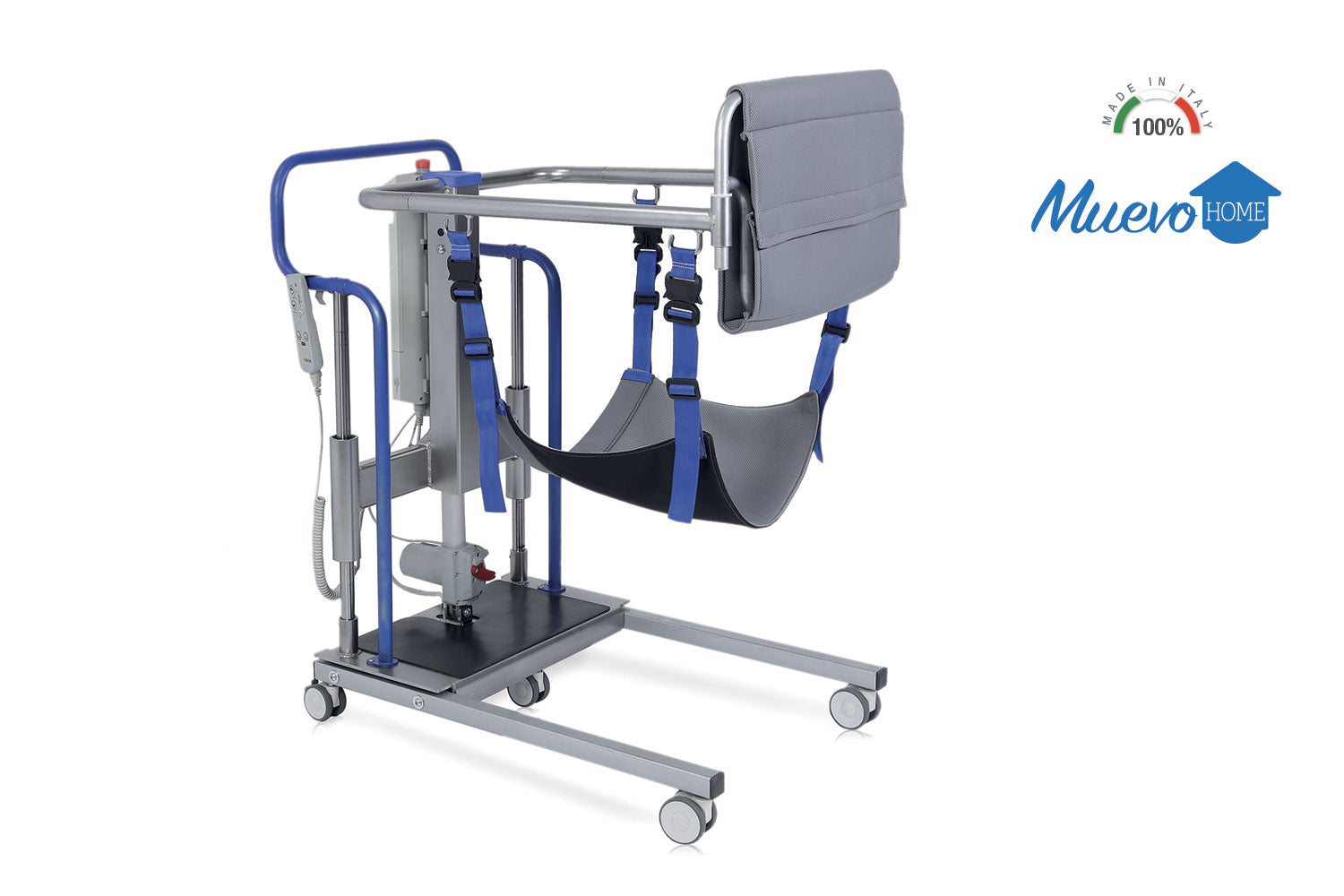

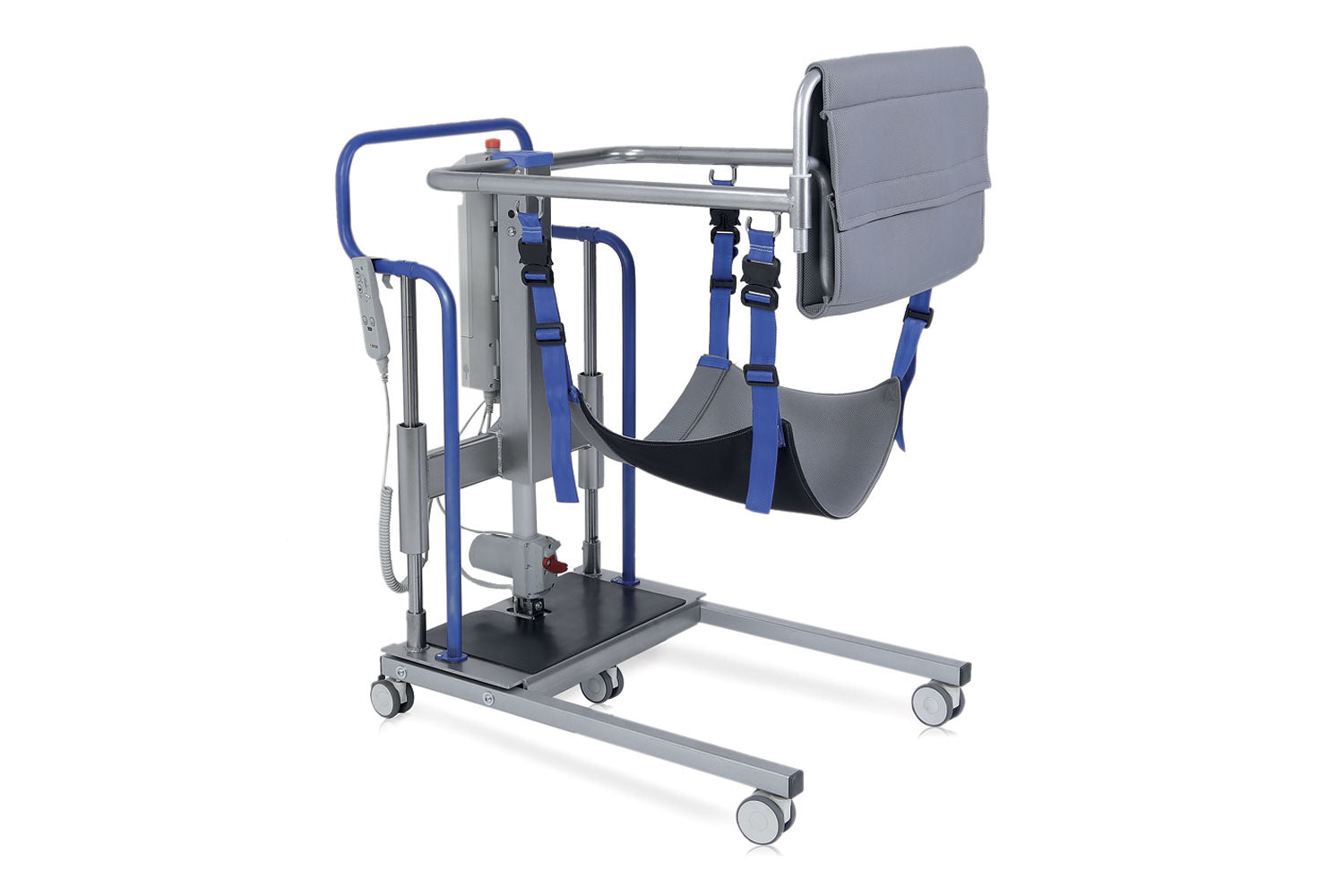

Muevo HOME electric lifter performs the functions of lifting and transferring people with mobility difficulties in a sitting position.
- Move the person from the bed, making him/her stand up or lie down on it
- Accompany the person to the bathroom
- Make the person sit or move from the armchair, chair, commode chair and wheelchair
- Transfer the person inside the home
- Place the person in the car
By installing the lifting arm (RIA910), it turns to patient lift in few and easy steps.
Technical features
(supplied)

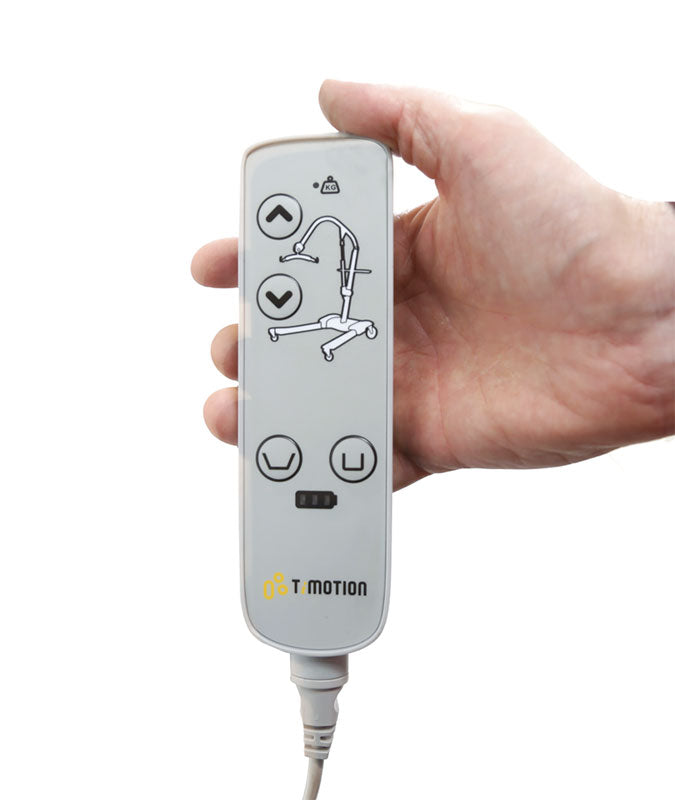

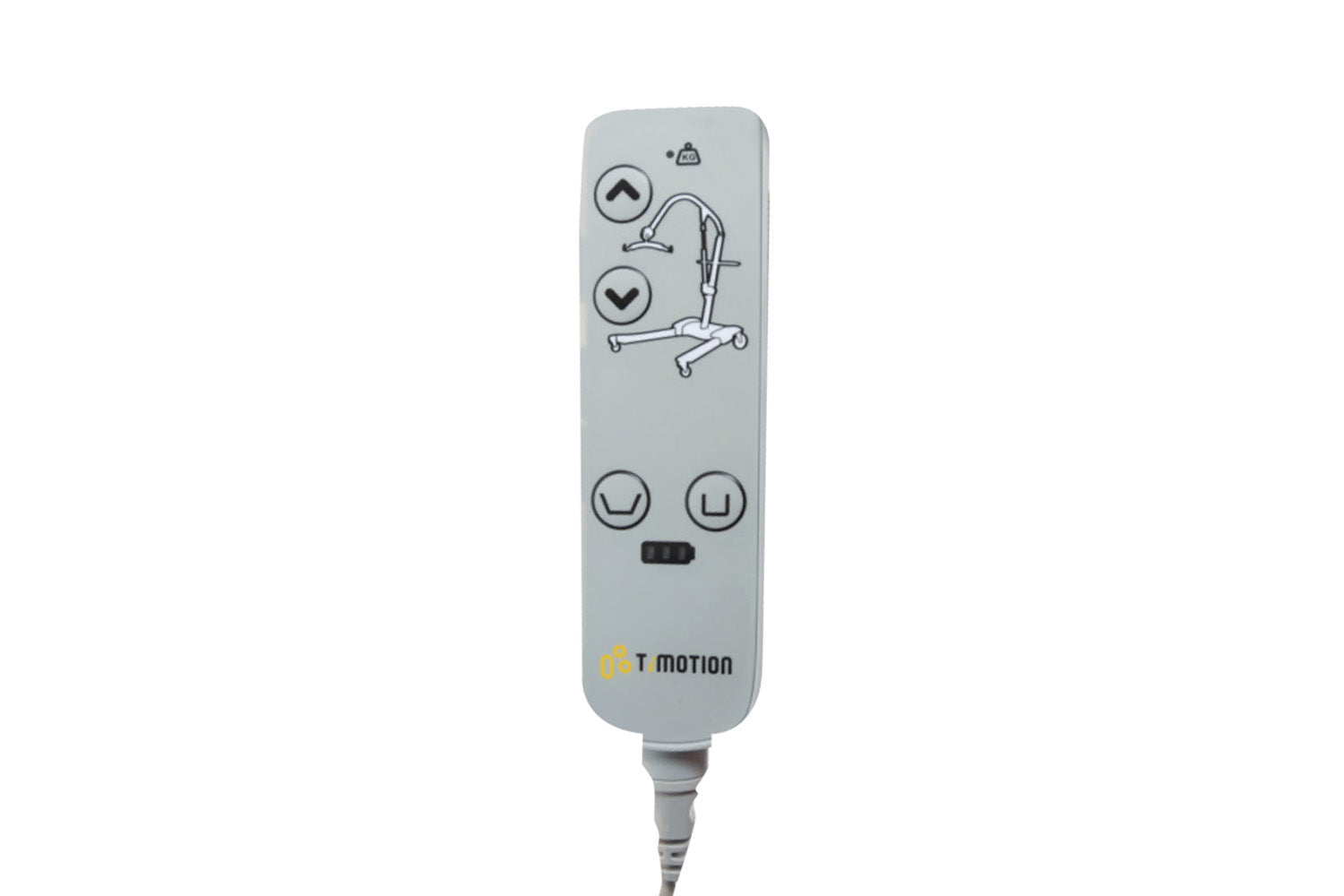

• Remote control for electric lifting and electric legs opening
• Supplied with removable padded backrest

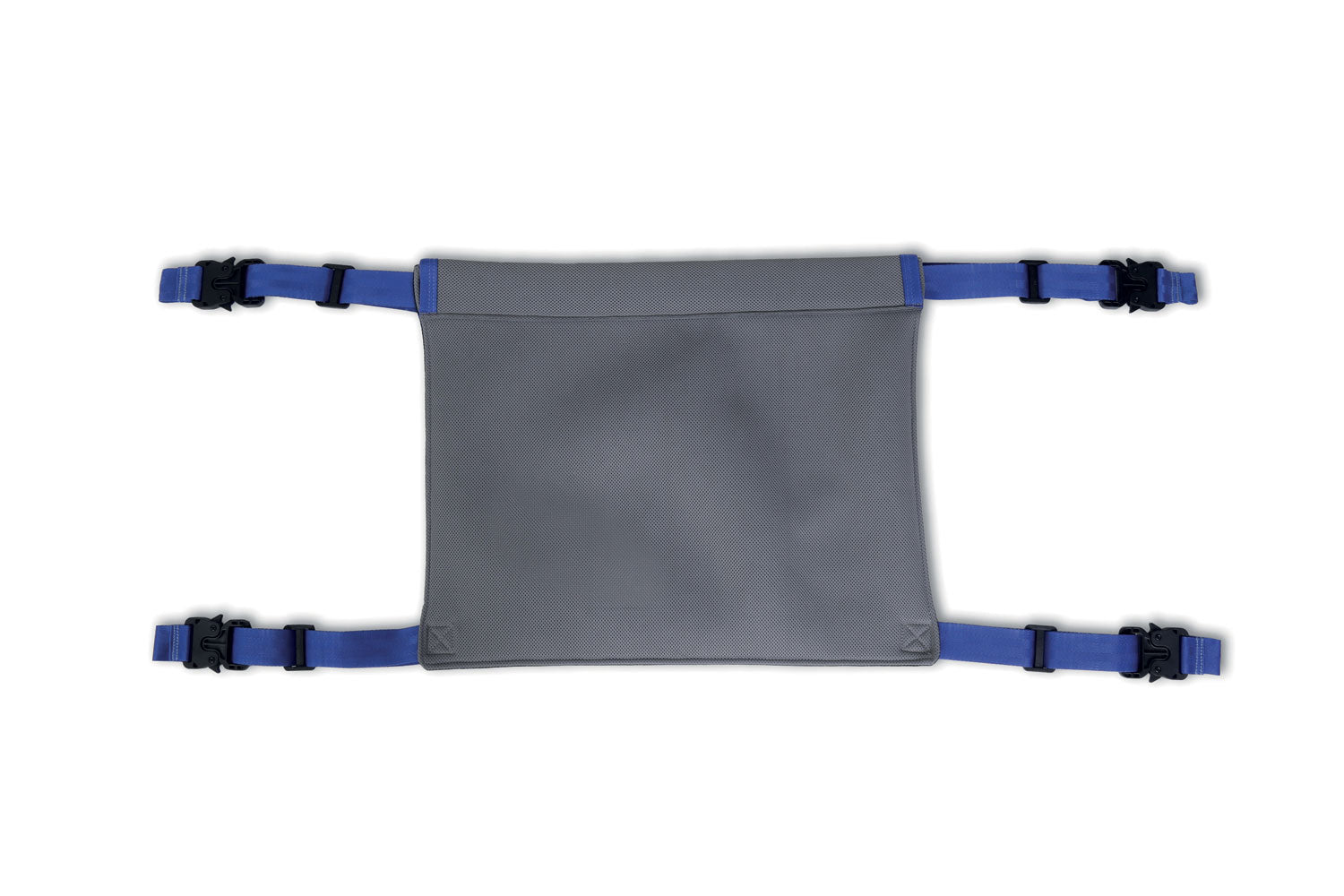

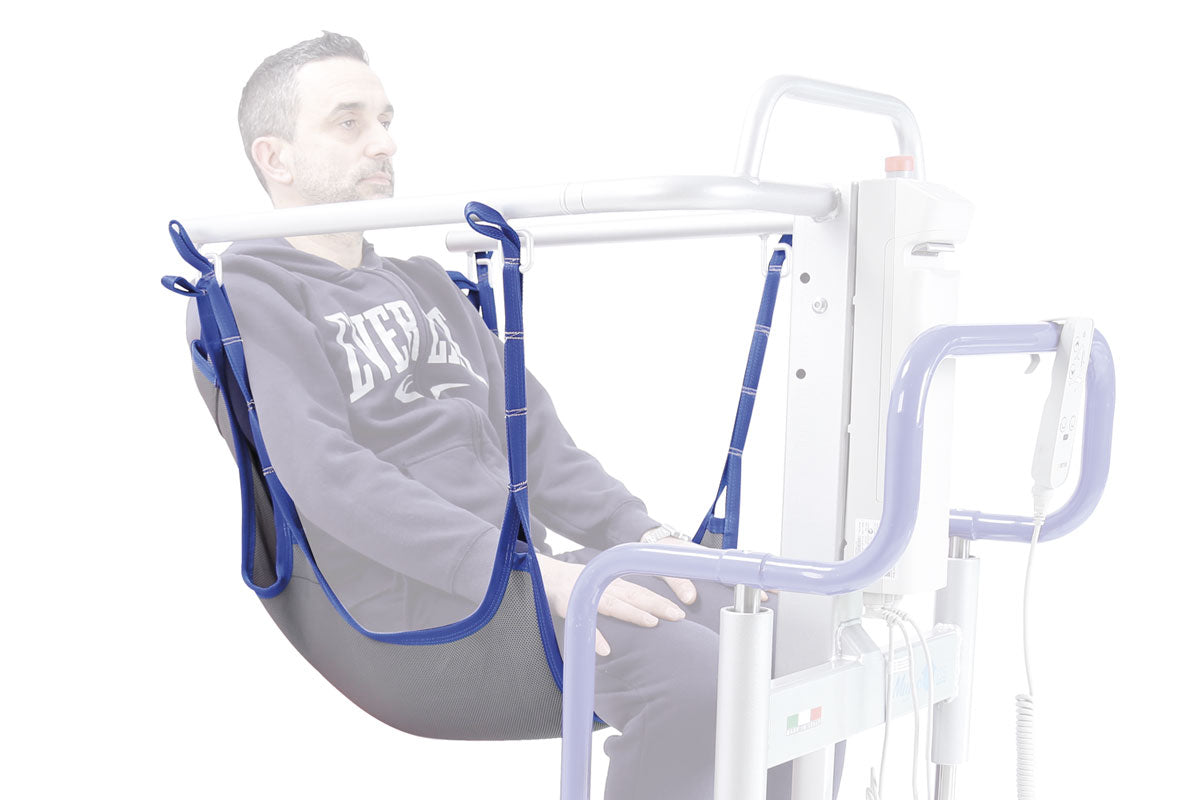

• Standard adjustable sling/seat supplied
• Rechargeable and removable battery
• Emergency button
• 5 castors, 2 of which rear with brake
• Detachable and removable horizontal arms, equipped with 4 hooks for slings
(functions)
Electric lifting from 84 to 119 cm
Electric legs opening from 50 to 75 cm
(optional)
Cod. RIA910 Lifting arm (optional) It can be installed on the central bearing column, by easily removing the two horizontal arms. It allows the device to be used as a patient lift using the slings of MUEVO patient lifts range

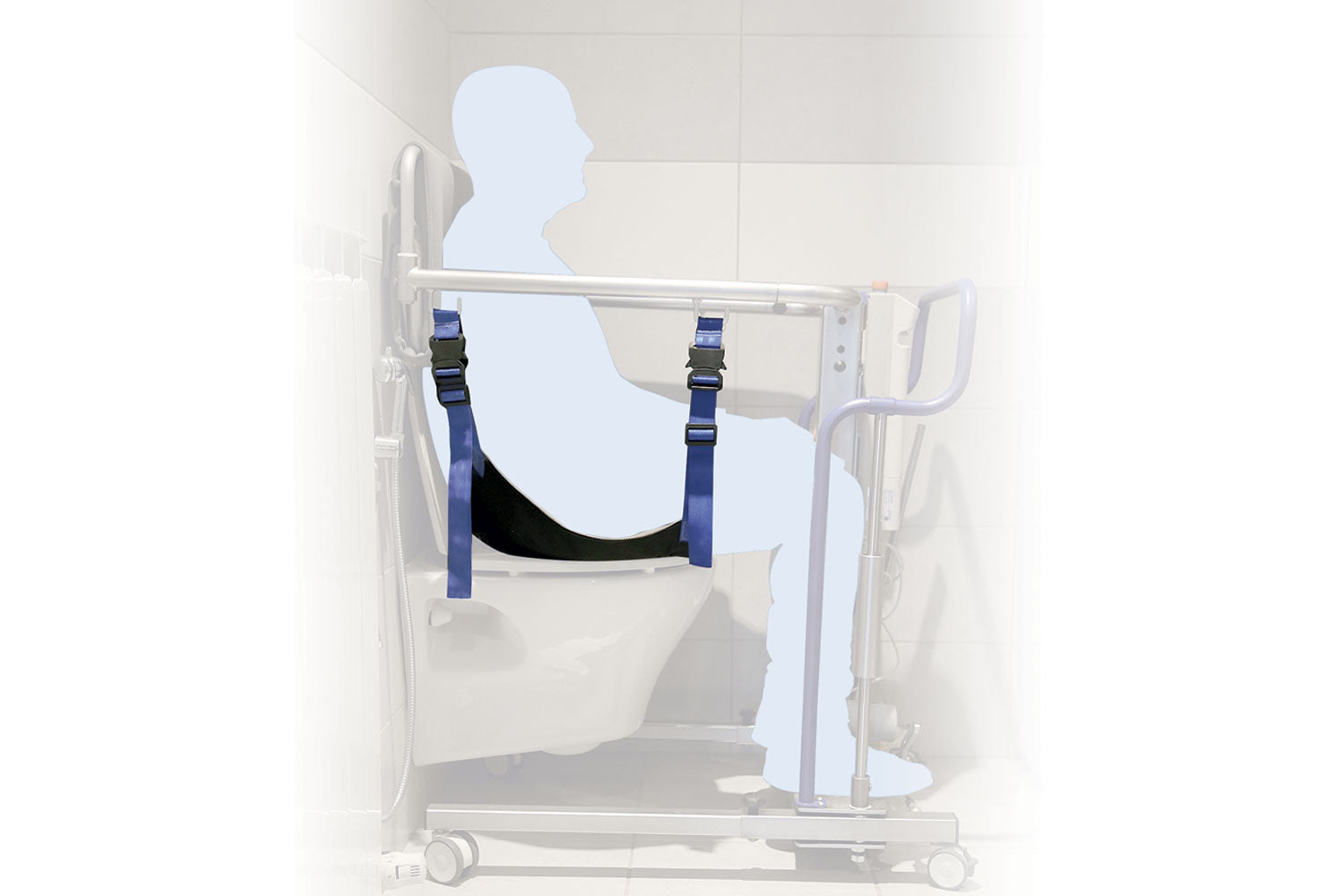

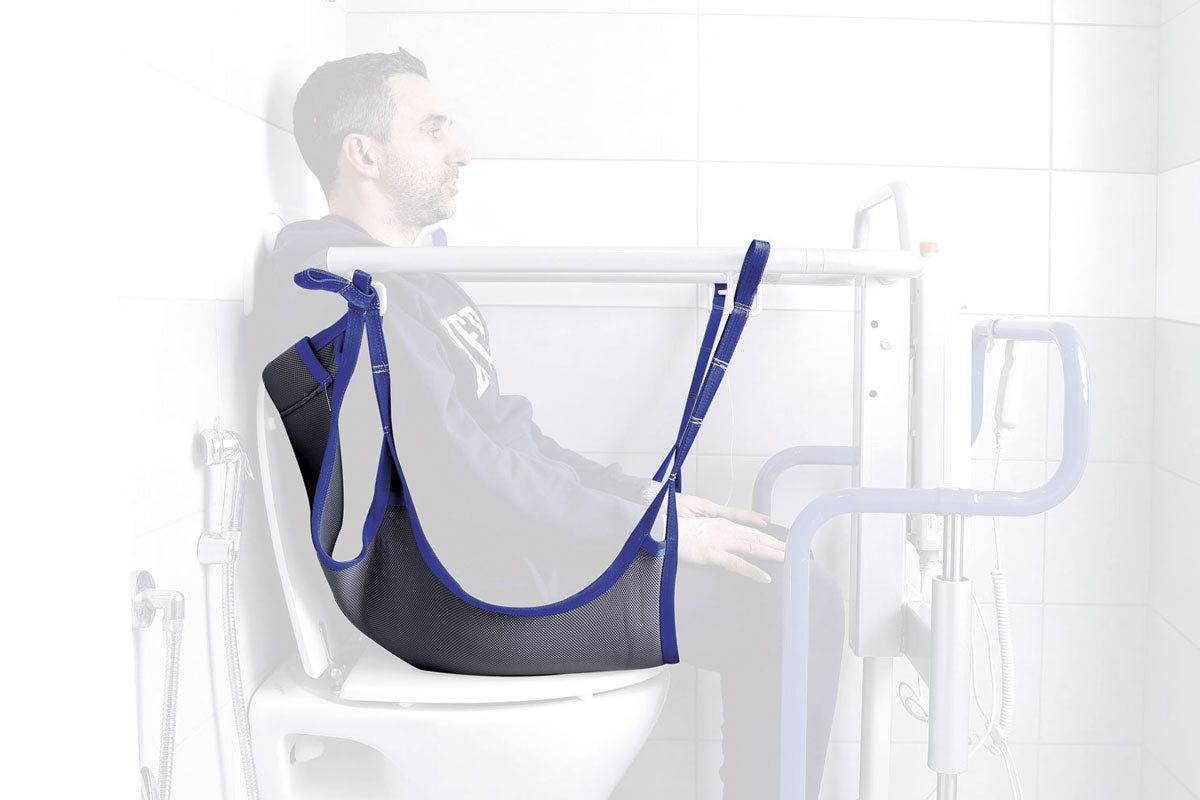

Cod. Cod. RIA210 Toilet sling
Technical features
| DIMENSIONS |
|---|
| [image: Dimensioni_RI900.png] |
| A |
B |
C |
D |
E |
F |
G |
H |
I |
[image: icona_peso.png] |
[image: icona_portatamax.png] |
| 100 cm |
12 cm |
84-119 cm |
int. 50 - 75 cm |
ext. 58 - 83 cm |
82,5 cm |
95 cm |
52 cm |
30 cm |
57 Kg |
180 Kg |
